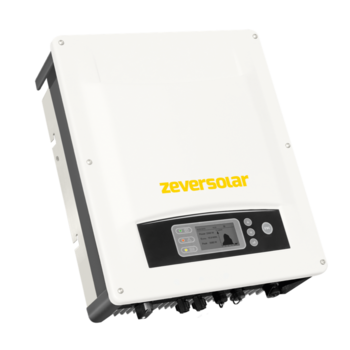

Input (DC)
Max. PV array power | 5280 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 200 V to 900 V / 640 V |
Min. input voltage | 180 V |
Initial feed-in voltage | 250 V |
Max. operating input current per MPPT input A / input B | 11 A / 11 A |
Max. short current per string input A / input B | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A : 1 ; B : 1 |
Output (AC)
Rated power | 4000 W |
Max. apparent AC power | 4400 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 6.8 A / 3 x 5.8 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.8 overexcited to 0.8 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98% / 97.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short-circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 405 / 498 / 222 mm |
Weight | 21 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 40 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, PPC, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 6600 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 200 V to 900 V / 640 V |
Min. input voltage | 180 V |
Initial feed-in voltage | 250 V |
Max. operating input current per MPPT input A / input B | 11 A / 11 A |
Max. short current per string input A / input B | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A : 1 ; B : 1 |
Output (AC)
Rated power | 5000 W |
Max. apparent AC power | 5500 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 8.5 A / 3 x 7.3 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.8 overexcited to 0.8 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98% / 97.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short-circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 405 / 498 / 222 mm |
Weight | 21 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 40 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, PPC, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 7200 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 200 V to 900 V / 640 V |
Min. input voltage | 180 V |
Initial feed-in voltage | 250 V |
Max. operating input current per MPPT input A / input B | 11 A / 11 A |
Max. short current per string input A / input B | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A : 1 ; B : 1 |
Output (AC)
Rated power | 6000 W |
Max. apparent AC power | 6000 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 9.2 A / 3 x 8.7 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.8 overexcited to 0.8 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98% / 97.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short-circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 405 / 498 / 222 mm |
Weight | 21 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 40 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, PPC, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 10560 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 200 V to 900 V / 640 V |
Min. input voltage | 180 V |
Initial feed-in voltage | 250 V |
Max. operating input current per MPPT input A / input B | 15 A / 11 A |
Max. short current per string input A / input B | 22.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A : 1 ; B : 1 |
Output (AC)
Rated power | 8000 W |
Max. apparent AC power | 8800 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 13.3 A / 3 x 11.6 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.8 overexcited to 0.8 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98.1% / 97.6% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short-circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 405 / 498 / 255 mm |
Weight | 25 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 45 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, TR 3.2.2 , VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 12000 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 200 V to 900 V / 640 V |
Min. input voltage | 180 V |
Initial feed-in voltage | 250 V |
Max. operating input current per MPPT input A / input B | 15 A / 11 A |
Max. short current per string input A / input B | 22.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A : 1 ; B : 1 |
Output (AC)
Rated power | 10000 W |
Max. apparent AC power | 10000 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 15.1 A / 3 x 14.5 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.8 overexcited to 0.8 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98.1% / 97.6% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short-circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 405 / 498 / 255 mm |
Weight | 25 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 45 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, TR 3.2.2 , VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
