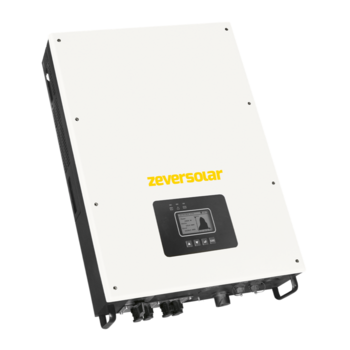

Input (DC)
Max. PV array power | 19500 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 270 V-950 V / 640 V |
Min. input voltage | 250 V |
Initial feed-in voltage | 300 V |
Max. operating input current per MPPT input A / input B | 22 A / 22 A |
Max. input current per string input A / input B | 11 A / 11 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A: 2; B: 2 |
Output (AC)
Rated power | 15000 W |
Max. apparent AC power | 16500 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 300 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 24 A / 3 x 21.8 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.85 overexcited to 0.85 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98.3% / 97.9% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 500 / 758 / 175 mm |
Weight | 43 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 60 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Fan cooling |
Degree of protection (according to IEC 60529) | IP55 (fans), IP65 (others) |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ● / - |
Data interfaces: Zeversolar Modbus | ● |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, TR 3.2.2 , VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 22100 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 270 V-950 V / 640 V |
Min. input voltage | 250 V |
Initial feed-in voltage | 300 V |
Max. operating input current per MPPT input A / input B | 22 A / 22 A |
Max. input current per string input A / input B | 11 A / 11 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A: 2; B: 2 |
Output (AC)
Rated power | 17000 W |
Max. apparent AC power | 18700 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 300 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 25.8 A / 3 x 24.7 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.85 overexcited to 0.85 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98.3% / 97.9% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 500 / 758 / 175 mm |
Weight | 43 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 60 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Fan cooling |
Degree of protection (according to IEC 60529) | IP55 (fans), IP65 (others) |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ● / - |
Data interfaces: Zeversolar Modbus | ● |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, TR 3.2.2 , VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 26000 Wp STC |
Max. input voltage | 1000 V |
MPP voltage range / rated input voltage | 270 V-950 V / 640 V |
Min. input voltage | 250 V |
Initial feed-in voltage | 300 V |
Max. operating input current per MPPT input A / input B | 22 A / 22 A |
Max. input current per string input A / input B | 11 A / 11 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / A: 2; B: 2 |
Output (AC)
Rated power | 20000 W |
Max. apparent AC power | 20000 VA |
AC nominal voltage | 220 V / 380 V 230 V / 400 V 240 V / 415 V |
AC voltage range | 160 V to 300 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated power frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current / rated output current | 3 x 30 A / 3 x 29.0 A |
Power factor at rated power / adjustable displacement power factor | 1 / 0.85 overexcited to 0.85 underexcited |
Feed-in phases / AC connection | 3 / 3-N-PE |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 98.3% / 97.9% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 500 / 758 / 175 mm |
Weight | 43 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 60 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Fan cooling |
Degree of protection (according to IEC 60529) | IP55 (fans), IP65 (others) |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 2000 m |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | Graphical LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ● / - |
Data interfaces: Zeversolar Modbus | ● |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, G59/3, TR 3.2.2 , VDE-4105, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, TOR D4 V2.2, CNS15382, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068 |
● standard
○ optional
- not available
As of December, 2018 / Technical data is subject to revisions.
