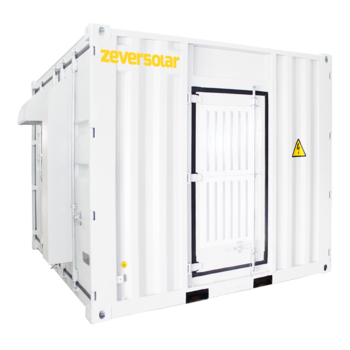

NSG-1000NG Solar Inverters


This megawatt station has been specifically designed to meet the requirements of the Chinese market. With our latest compact station solution, which combines two of our latest 500kW inverters, as well as DC and AC power distribution, monitoring and protection systems, we kept its size as small as possible. It also allows most effective installation and low maintenance costs.


  • Function of low voltage ride through
  • Maximum efficiency of 98.7%
  • MPPT precision of over 99.9%
  • Capable of power distribution up to 1 MW
  • High strength enclosure suitable for long distance transportation and robust installation
  • Equipped with environmental test equipment
  • No derating below 3000 m
  • Perfect protection function
NSG-1000NG Solar Inverters

DC input data

Max. DC input (cosφ=1) [KW] 1120
Max. DC voltage [V] 1000
MPP voltage range [V]500-850
Max. DC current [A] 2240
Number of MPP trackers 1+1
Number of DC inputs 16

Output data

Rated power [KW] 1000
Max. AC output power [KVA] 1100
Operating grid voltage ± 10 % [V] 315
Operating range, grid frequency [Hz] 50
Max. AC current [A] 2016
Power factor (cosφ) 0.9 inductive ... 0.9 capacitive
Harmonic distortion (THD) at rated output < 3%
Power consumption at night [W] < 200


Max. efficiency PAC, max (ŋ) 98.7%
European weighted efficiency 98.5%


Power switch AC side OT+FUSE
Power switch DC side Switch
Monitored surge voltage protectors DC TYPE II
Monitored surge voltage protectors AC TYPE II
Monitored surge voltage protectors for auxiliary supply TYPE II
DC overvoltage protection, DC overcurrent protection Yes
AC overvoltage protection, AC overcurrent protection Yes
Fan monitoring Yes
Ground fault device/interrupt (GFDI) Optional
DC Insulation monitoring Yes

General data

Dimensions (WxHxD) [mm] 2991 x 2591 x 2438
Weight [kg] 6000
Installation environment Outdoor
Operating temperature range -25°C ... +55°C (derating in case of temperatures above 45°C)
Relative humidity 0% to 95%, no condensation
Site altitude 4000m
IP protection type IP54
Insulation type Transformerless
Cooling concept Fan cooling
Human machine interface (HMI) LCD touchscreen
Communication interface RS485/RS232
Certificates and approvals CNCA/CTS 0004-2009A, CNCA/CTS 0006-2010, GB/T 19964-2012


As of July, 2015 / Technical data is subject to revisions.
