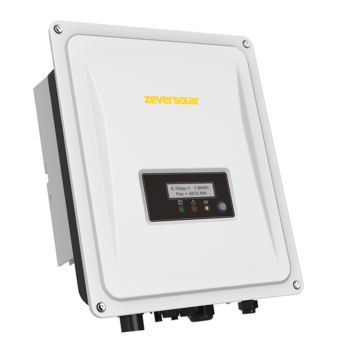

Input (DC)
Max. PV array power | 4780 Wp STC |
Max. input voltage | 600 V |
MPP voltage range / rated input voltage | 100 V to 520 V / 360 V |
Min. input voltage | 80 V |
Initial feed-in voltage | 150 V |
Max. operating input current per MPPT | 11 A / 11 A |
Max. short circuit current per MPPT / per string input | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / 1 |
Output (AC)
Rated power | 3680 W |
Max. apparent AC power | 3680 VA |
AC nominal voltage | 220 V / 230 V / 240 V |
AC voltage range | 180 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated grid frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current | 16 A |
Power factor at rated power | 1 |
Adjustable displacement power factor | 0.8 overexcited to 0.8 underexcited |
Feed-in phases | 1 |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 97.2% / 96.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 341 / 395 / 172 mm |
Weight | 11.8 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 25 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 4000 m (>3000m derating) |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | 16 x 2 characters LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G83/2, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, CNS15382, IEC62109 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 5720 Wp STC |
Max. input voltage | 600 V |
MPP voltage range / rated input voltage | 100 V to 520 V / 360 V |
Min. input voltage | 80 V |
Initial feed-in voltage | 150 V |
Max. operating input current per MPPT | 11 A / 11 A |
Max. short circuit current per MPPT / per string input | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / 1 |
Output (AC)
Rated power | 4000 W |
Max. apparent AC power | 4400 VA |
AC nominal voltage | 220 V / 230 V / 240 V |
AC voltage range | 180 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated grid frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current | 20 A |
Power factor at rated power | 1 |
Adjustable displacement power factor | 0.8 overexcited to 0.8 underexcited |
Feed-in phases | 1 |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 97.2% / 96.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 341 / 395 / 172 mm |
Weight | 11.8 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 25 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 4000 m (>3000m derating) |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | 16 x 2 characters LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G59/3, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, CNS15382, IEC62109 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 6500 Wp STC |
Max. input voltage | 600 V |
MPP voltage range / rated input voltage | 100 V to 520 V / 360 V |
Min. input voltage | 80 V |
Initial feed-in voltage | 150 V |
Max. operating input current per MPPT | 11 A / 11 A |
Max. short circuit current per MPPT / per string input | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / 1 |
Output (AC)
Rated power | 5000 W 1) |
Max. apparent AC power | 5000 VA 1) |
AC nominal voltage | 220 V / 230 V / 240 V |
AC voltage range | 180 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated grid frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current | 23 A 2) |
Power factor at rated power | 1 |
Adjustable displacement power factor | 0.8 overexcited to 0.8 underexcited |
Feed-in phases | 1 |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 97.2% / 96.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 341 / 395 / 172 mm |
Weight | 11.8 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 25 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 4000 m (>3000m derating) |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | 16 x 2 characters LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 3) & 4) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, G59/3, VDE-0126, AS/NZS 4777, C10/C11, VFR 2014 & UTE C15, NS15382, MEA2013, IEC62109 |
● standard
○ optional
- not available
1) Based on the VDE 4105 requirements active power and apparent power will be limited to 4600W and 4600VA
2) 21.7A according to AS/NZS4777.2:2015
3) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
4) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
Input (DC)
Max. PV array power | 4780 Wp STC |
Max. input voltage | 600 V |
MPP voltage range / rated input voltage | 100 V to 520 V / 360 V |
Min. input voltage | 80 V |
Initial feed-in voltage | 150 V |
Max. operating input current per MPPT | 11 A / 11 A |
Max. short circuit current per MPPT / per string input | 16.5 A / 16.5 A |
Number of independent MPPT inputs / strings per MPPT input | 2 / 1 |
Output (AC)
Rated power | 3000 W |
Max. apparent AC power | 3000 VA |
AC nominal voltage | 220 V / 230 V / 240 V |
AC voltage range | 180 V to 280 V |
AC grid frequency / range | 50 Hz / 45 Hz to 55 Hz 60 Hz / 55 Hz to 65 Hz |
Rated grid frequency / rated grid voltage | 50 Hz / 230 V |
Max. output current | 15 A |
Power factor at rated power | 1 |
Adjustable displacement power factor | 0.8 overexcited to 0.8 underexcited |
Feed-in phases | 1 |
Harmonic distortion (THD) at rated output | < 3% |
Efficiency
Max. efficiency / European efficiency | 97.2% / 96.5% |
Protective devices
Input-side disconnection device | ● |
Ground fault monitoring / grid monitoring | ● / ● |
DC reverse polarity protection / AC short circuit current capability | ● / ● |
All-pole-sensitive residual-current monitoring unit | ● |
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1) | I / AC : III ; DC : II |
General data
Dimensions (W / H / D) | 341 / 395 / 172 mm |
Weight | 11.8 kg |
Operating temperature range | -25 ℃ to +60 ℃ |
Noise emission (typical) | < 25 dB(A) |
Self-consumption (at night) | < 1 W |
Topology | Transformerless |
Cooling concept | Convection |
Degree of protection (according to IEC 60529) | IP65 |
Climatic category (according to IEC 60721-3-4) | 4K4H |
Max. permissible value for relative humidity (non-condensing) | 100% |
Max. operating altitude | 4000 m (>3000m derating) |
Features
DC connection | SUNCLIX |
AC connection | Plug-in connector |
Mounting type | Wall mounting bracket |
Display | 16 x 2 characters LCD |
LED Indicators (Status / Fault / Communication) | ● |
Interface: RS485 / WLAN & Ethernet 1) & 2) | ○ / ○ |
Certificates and approvals (more available on request) | CE, EN50438, VDE-0126, C10/C11, VFR 2014 & UTE C15, IEC62109 |
● standard
○ optional
- not available
1) Zero export installations supported with 2-pin RS485 for connection to approved smart meters
2) DRED supported with analog RJ45 interface for Australia & New Zealand
As of December, 2018 / Technical data is subject to revisions.
